Bivert an original "DMG" Game Boy

Written 4/18/2009

Note! I wrote this in high school when I was a dingus! The guide is still mostly fine, but I want to note that you should tie the unused inputs on the 74HC04 to ground or 5V. This means pins 5, 9, 11, and 13 should all be conneted to ground or 5V!

So, I already wrote about what a biversion was in my pocket guide -; that can be found on the pane on the right -; so I'll cut to the chase: This mod + an inverted screen == a really high contrast screen.

You will need:

      1 x 74hc04 or similar data inverter

      1 x DMG (Game Boy)

      1 x tri-wing screwdriver

      Some wire


      Soldering iron


      A knife

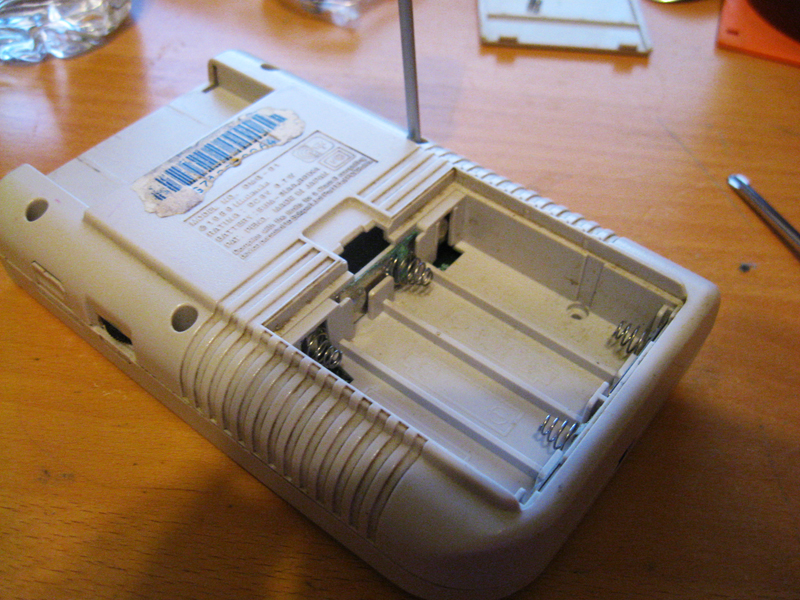

Open up your DMG.

Find this part at the top.

There is an array of 6 dots near the top of the board. The lower-left and lower-right dots have two traces (light lines on the green part) going to the big white connector. Take your knife, and cut off the traces near the big white connector that come from the 2 dots:

Now, grab your 74hc04 chip:

Solder 2 wires from the big white connector (the pins corresponding to the traces you just cut) and solder them to pins 2 and 4 of the chip (starting in the lower-left corner of the chip). The leftmost wire goes to pin 2, the rightmost to pin 4.

Then, solder 2 wires to the dots from before:

Solder those 2 wires to pins 1 and 3 (pin 1 goes to the left dot, pin 2 the right dot)

Now on the other side of the chip, pin 14 (across from pin 1) gets a wire soldered to the spot shown in this picture:

Back on the front, solder from pin 7 a wire to the grounding point shown in the picture:

Now, make it all fit:
